Products / Manual Pullers / External Pullers

Products

2 Jaws Manual Pullers

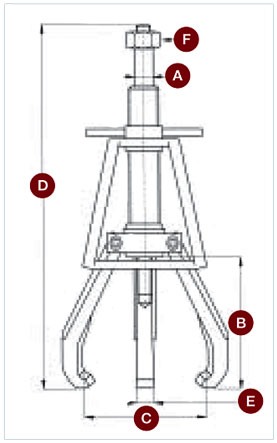

Model Number	Capacity Tons	Center Bolt Diameter (A) (mm)	Maximum Reach (B) (mm)	Spread Range (C) (mm)	Maximum Torque	Weight
202	1	7.9 mm	57 mm	6.4 to 82.6 mm	-	.28 kg
203	2	9.4 mm	76.2 mm	6.4 to 114.3 mm	-	.51 kg
204	2	12.7 mm	102 mm	13 to 127 mm	20 ft./lb. (27 N.m)	1.5 kg
206	6	15.8 mm	152 mm	13 to 178 mm	75 ft./lb. (101 N.m)	3.2 kg
200	1	7.9 mm	57 mm	6.4 to 82.6 mm	-	.28 kg
208	12	19 mm	203 mm	19 to 305 mm	150 ft./lb. (203 N.m)	5.4 kg
210	14	19 mm	246 mm	25 to 381 mm	175 ft./lb. (237 N.m)	5.9 kg
213	25	28.5 mm	305 mm	64 to 457 mm	475 ft./lb. (642 N.m)	17.3 kg
216	35	32 mm	356 mm	76 to 635 mm	800 ft./lb. (1,081 N.m)	25.9 kg

Dimensions			Optional Accessories
Overall Length	Jaw Width (E) in. (mm)	Hex Socket (F) in. (mm)
140.2 mm	6.4 mm	-	-	-	-	-
177.8 mm	8 mm	-	-	-	-	-
255.3 mm	15.8 mm	19 mm	P-4	X-4	-	-
338.3 mm	19 mm	19 mm	p-6	x-6	-	10654T
140.2 mm	6.4 mm	-	-	-	-	-
412.8 mm	22.2 mm	25.4 mm	p-10	x-10	11054/11054L	11054T
518.4 mm	25.4 mm	25.4 mm	P-10	X-10	11054L	11054T
692.2 mm	32 mm	32 mm	P-13/16	-	11354L	-
813.8 mm	38 mm	38 mm	P-13/16	-	11354L	-

3 Jaws Manual Pullers

Model Number	Capacity Tons	Center Bolt Diameter (A) (mm)	Maximum Reach (B) (mm)	Spread Range (C) (mm)	Maximum Torque	Weight
102	1	7.9 mm	57 mm	6.4 to 82.6 mm	-	.31 kg
103	2	9.4 mm	76.2 mm	6.4 to 114.3 mm	-	.59 kg
104	5	12.7 mm	102 mm	13 to 127 mm	40 ft./lb. (54 N.m)	1.9 kg
106	10	15.8 mm	152 mm	13 to 178 mm	130 ft./lb. (176 N.m)	3.6 kg
108	17	19 mm	203 mm	19 to 305 mm	220 ft./lb. (297 N.m)	6.4 kg
110	20	19 mm	246 mm	25 to 381 mm	275 ft./lb. (372 N.m)	7.3 kg
113	30	28.5 mm	305 mm	64 to 457 mm	600 ft./lb. (811 N.m)	19.9 kg
116	40	32 mm	356 mm	76 to 635 mm	850 ft./lb. (1,149 N.m)	68 lbs. (30.9 kg)

Dimensions			Optional Accessories
Overall Length	Jaw Width (E) in. (mm)	Hex Socket (F) in. (mm)
140.2 mm	6.4 mm	-	-	-	-	-
177.8 mm	8 mm	-	-	-	-	-
255.3 mm	15.8 mm	19 mm	p-4	x-4	-	-
338.3 mm	19 mm	19 mm	p-6	x-6	-	10654T
412.8 mm	22.2 mm	25.4 mm	P-10	X-10	11054/11054L	11054T
518.4 mm	25.4 mm	25.4 mm	P-10	X-10	11054L	11054T
692.2 mm	32 mm	32 mm	P-13/16	-	11354L	-
813.8 mm	38 mm	38 mm	P-13/16	-	11354L	-
