PHES Series

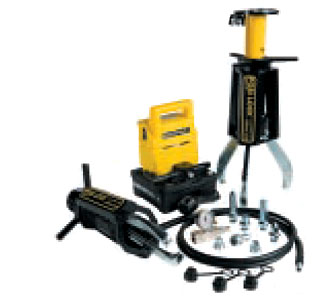

Contains: Puller Iron, Ram Points, Lift Plate, Hydraulic Cylinder, 2 Stage Electric Pump, Gauge Adapter,
10,000 PSI Gauge, Male Coupler with dust cap, 10-foot heavy-duty Hose

Model Number Capacity Tons Number of Jaws Reach
in.(mm)		 Spread
in.(mm)
PHES-206 5 2 152.4 mm 12.7 to 203.2 mm
PHES-106 5 3 152.4 mm 12.7 to 203.2 mm
PHES-208 10 2 203 mm 19 to 305 mm
PHES-108 10 3 203 mm 19 to 305 mm
PHES-210 15 2 254 mm 25 to 381 mm
PHES-110 15 3 254 mm 25 to 381 mm
PHES-213 25 2 305 mm 64 to 457 mm
PHES-113 25 3 305 mm 64 to 457 mm
PHES-216 50 2 356 mm 76 to 635 mm
PHES-116 50 3 356 mm 76 to 635 mm
Optional Accessories
Dimensions
Optional Long Jaws Reach with Long Jaws
in.(mm)		 Spread with Long Jaws
in.(mm)		 Optional Leveling Arm Bracket Set Optional Hydraulic Lift art Optional Storage Transport Cart
- - - - - -
- - - - - -
11054/11054L 249 mm/406 mm 58 to 401 mm/38 to 559 mm - - -
11054/11054L 249 mm/406 mm 58 to 401 mm/38 to 559 mm - - -
11054L 406 mm 38 to 559 mm PH-1210 - -
11054L 406 mm 38 to 559 mm PH-1110 - -
11354L 508 mm 38 to 762 mm PH-1213 PT-3050 PT-2550
11354L 508 mm 38 to 762 mm PH-1113 PT-3050 PT-2550
PH-21654L 660 mm 51 to 965 mm PH-1216 PT-3050 PT-2550
PH-21654L 660 mm 51 to 965 mm PH-1116 PT-3050 PT-2550
