Products / Speciality Tools
Posi Lock Hydraulic Bench Vise
Features and Benefits:
- 5 tons of clamping power
- Hands-free operation with foot pump control
- Air control valve for variable speed and added safety
- Cast steel construction: 52,600 PSI tensile strength
- Operates in vertical and horizontal positions
- Jaws are 8 inches wide, and open to 8 inches
- Replaceable jaw plates
- Hydraulic pressure closes jaws
- Spring return opens jaws
Hydraulic Bench Vise includes:
- 5-ton hydraulic vise
- Air-over-hydraulic 10,000 PSI foot pump with air control valve
- Optional manual foot pump
- 10,000 PSI gauge
- 10-foot hydraulic hose
- Set of Posi Lock Hold-Ets magnetic vise clips
HE-3 Hold-Ets Magnetic Vise Clips
Hold-Ets magnetically hold sockets for assembling and disassembling universal joints and many other jobs.
Our product not only has superior magnetic locking power but also the ability to hold items such as sockets, screws, c-clips, etc., firmly in place, allowing "Free Hands" for clamping the vise.
Features and Benefits:
- Holds 5½ pounds vertically and 2¾ pounds horizontally
- Makes removal of u-joint a one man operation
- Fits all vises
- Rigid aluminum construction
- Eliminates the need for extra hands
- Holds sockets no matter what type of drive
- Use as a jaw liner for non-marking material
- Holds screws, rings, c-clips, springs and many other shapes and sizes for repair projects
- Holds threaded objects rigid without damage to threads
Posi Lock MVP5 Machinist Vise
The new design of Posi Lock's MVP5 machinist vise is revolutionary! The vise uses shop air pressure to produce up to 6,000 pounds of clamping force. Its built-in power intensifi er eliminates the need for clumsy and expensive add-on power sources. Setups with the MVP5 are accurate and repeatable within .001 inch. The 90º indexable jaws give users four machinable sides, and are both anti-lift and quick-change in design. Jaw sets are available in aluminum or steel. With the safe, fast and effortless operation of the MVP5, expect to see enhanced efficiencies, productivity and worker satisfaction.
Features and Benefits:
- Built-in power source
- 0-6,000 pounds of clamping force
- Self-contained safety relief valve
- Completely sealed design
- All wear components are hard-coated
- Lightweight aluminum design dampens vibrations
- Low maintenance
- Accurate and repeatable set-ups within .001 inch
- Anti-lift jaw design
- 90º indexable jaws (4 usable sides)
- Low-profi le mounts for maximum machinable jaw height
- Tested a million-and-a-half cycles
- Low maintenance-critical vise components are completely sealed from contaminants
Horizontal Alignment Tool Sets
Portable SIDE ALIGN sets make aligning your motors, pumps, and gear boxes safe, quick and easy. Eliminate the use of jack bolts, frames and heavy hammers to try to move equipment to the tolerances you demand.
All-in-one, go-anywhere portable jack bolt set. Use the smooth power of an eccentric socket to turn rotary motion into controlled, precise linear movement. By rotating the eccentric socket, linear movement is transferred to the motor foot, creating a precise movement to the desired alignment position.
Because aligning rotating machinery is not just about precision measuring, it is also about precision moving, Posi Lock is providing you with our SIDE ALIGN.
If you have precise measuring equipment, let SIDE ALIGN provide you with the ability to make precise horizontal adjustments within .001 or closer.
(9.4 to 19 mm)
(9.4 to 32 mm)
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||
The companies listed below use Posi Lock alignment tools and undercut bolts
- Sprague Paperboard
- Nestle Frozen Foods
- Illinois Electric
- John Deere
- PGE
- Scott Papers
- Hutchinson Tech.
- Ford Motor Company
- Texaco Refi ning
- Amerada Hess Corp.
- General Electric
- Huneke Associates
- Weyerhauser Paper Co.
- Proctor and Gamble
- Asarco Inc
- Midwest Power
- International Paper
- Fraser Paper
- Gaylord Chemical
- Champion International
- Johnson Controls
- Alcoa
- Amoco
- Westinghouse
- Palisades Nuclear Plant
- Niagara Mohawk Power Corp.
- Mead Corporation
- John Hopkins University
- Duke Power Co.
- Toray
- GSA
- Franklin Square Hospital
- Dow Chemical
- Wisconsin Power and Light
- Stone Container Corp.
- Monsanto
- Shell Offshore
- Shell Western
- Thomas Hill Energy Center
- Caterpillar
- Armco
- Eastman Kodak
- Owens Corning
- Consumers Energy
- Alabama Power
- Millstone Nuclear
- Power System
- Royster-Clark
- Entergy-Nuclear NE

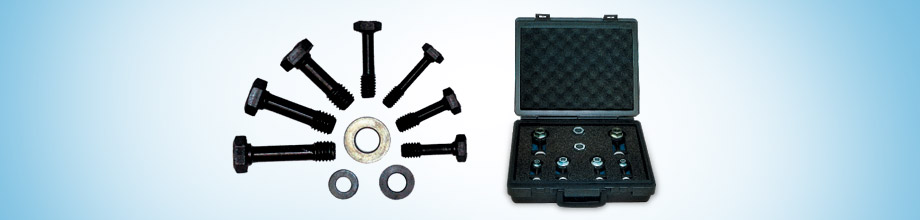

Motor Alignment Undercut Bolt Sets
Virtually eliminates the problem of "Bolt Binding." This innovative precision undercut bolt and washer system helps reduce downtime and increase productivity by helping you achieve and maintain perfect alignment faster and easier than ever before.
Features and Benefits:
- Hardened, grade-8 bolts
- Precisely machined
- Maximum clearance
- Through-hardened, plated washers
- Custom sets available
(7.9 to 12.7 mm)
(32 to 50.8 mm)
(14 to 19mm)
(38 to 63.5 mm)
|
|
